Site Infrastructure & Power Management System or SIMS, is a combination of various Functional Blocks, that facilitates management of Unmanned Telecom Sites. This is a complete standalone site manager which makes maximum Utilization of Grid Power. RKTPL is one of the most trusted Site Infrastructure Management System (SIMS) suppliers worldwide. This can be ordered with various combinations to suit every site or need. Built in Class-B & C Lightning and Surge protection, RFI/EMI/EMC/EFT filters. SIMS meets international standards i.e. CE, UL etc.

Glimpse of Site Infrastructure & Power Management System or SIMS advantages

  • CAPEX Optimization
  • Eliminates all discrete blocks such as AVR+IT, Generator ATS Panel, Surge Arrestors, Air-conditioner controller, AC Distribution etc.
  • Saving on OPEX
  • Minimizes Generator Run Time by utilizing Grid Power even if two phases are available
  • Does battery cycling by precisely observing battery voltage and shelter temperature.
  • No Human Intervention after Installation.
  • Fully Integrated Unit allows faster network rollout.
  • Minimizes bulky & lengthy cable routing & terminations.
  • Remote Site Status Communication on 5 hand phones and two remote servers/computers/laptop
  • Available in various capacities (7.5, 10, 12.5, 15, 17.5, 20, 30kVA)

Site Infrastructure Management System (SIMS)-Technical Specifications

Functional Blocks

  • Phase Selector
  • Class-B & Class-C Lightning & Surge Protection
  • Static Line Conditioner & Isolation Transformer
  • Automatic Transfer Switch (ATS) & Generator Management
  • Air-conditioner controller
  • Alarm Management & Event Logging
  • AC Distribution
  • Site Status Communications & Management Functions

Phase selector

  • Selects the best available phase(s)
  • Three Phase Delta Input –P-P Output
  • Three Phase Star Input –P-N Output
  • HVD / LVD / Overload protection
  • Hysterisis and time delay to prevent hunting Stabilizers for contactor drive

Lightning & Surge Protection

  • Class B & Class C protection

Static Line Conditioner Unit (LCU)

  • SCR based -robust performance
  • High correction speed (10 m sec) with no moving parts
  • Isolation Transformer included
  • Wide Input Range (170V –480V)
  • 1 or 2 LCU’s per system
  • Ratings 5 / 7.5 / 12.5 /15 kVA

Main Controller

  • Single 1 or 3 phase generator
  • Generator protection
  • Battery cycling function
  • Thermal management function
  • Alarm management & logging
  • Optional Air Conditioner Control
  • Programmable –MMI / GUI / GPRS

ACDB

  • AC distribution –customized

Infrastructure Management System

  • GSM based wireless communication platform
  • Seven digital inputs for legacy alarms
  • SMS to up to 2 monitoring servers & 5 hand phones
  • In-built non-volatile memory for storing parameters
  • Additional 6 relay contacts can be operated in a secure manner
  • Extensive Top & Bottom ’n’reports for management analysis

Salient Features

  • Dual Generator Interface
  • Saving in space & Installation
  • High/Low Voltage Disconnection
  • Inbuilt Isolation
  • Highly Efficient Static AVR
  • High Reliability & improved MTBF
  • Better M2M interface through menu driven panel
  • GSM/CDMA modem based storage/transfer of performance data for records/analysis
  • Remote monitoring & history tracking
  • Easy analysis & maintenance management
  • Easy installation and maintenance

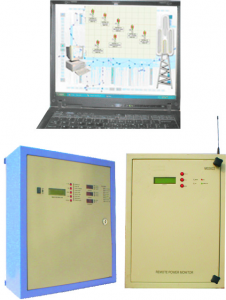

This is a comprehensive remote monitoring & management tool for telecom passive electrical infrastructure at unmanned/manned telecom sites from a central location. This system is a operations assistance tool helping management to focus attention on sites with recurring problems or high operational expenses as well as gather data / statistics about energy spends / savings of telecom sites. A second version provides uniform control function for Generator management & air conditioner management besides providing the central monitoring. It is a universal system for transmission of alarm and critical site status information through the cellular network to central monitoring server as well as support staff hand phones.

The functions provided include –

  • SMS/GPRS based.

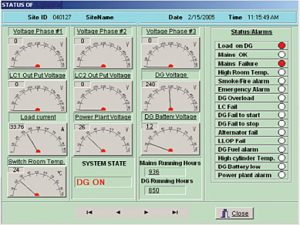

  • Site Status Display.
  • Online alarms/logging.
  • Remote monitoring module/ Remote monitoring & control module.
  • Remotely programmable central & hand phone numbers.
  • Optional SNMPv2 interface.
