RKTPL's time and frequency reference solutions synchronize critical operations where failure is not an option. Combining precision master clock technology with exceptional configurability, RKTPL time & frequency reference solutions deliver the industry’s highest standards for extreme reliability, security, redundancy, and flexibility in a rugged, modular, cost effective form factor.
RKTPL's NTP/PTP Time Servers deliver highly precise time to LAN/WAN/All-IP networks using NTP PTPv2 IEEE1588 protocols. It is equipped with 2 independent Ethernet 10/100Mbps. The GNSS is a standard UTC reference time. RKTPL's NTP/PTP Time Server is equipped with independent GNSS receiver inputs.Built-in OCXO/Rubidium oscillator guarantees time for limited medium period of missing GNSS signals.
RKTPL's NTP/PTP Time Server is STRATUM-1, PTP/IEEE1588 GRANDMASTER supporting highly accurate time stamps. It offers accuracy of µs on LAN/WAN/All-IP networks. RKTPL's NTP/PTP Time Server synchronizes UTC time and can simultaneously serve up to 100,000 NTP clients.
AVAILABLE OPTIONS
Standard configurations include the following options:
| Base Model - Backup Oscillator | Description |
| OCXO | Crystal oscillator. Provides holdover performance with a max drift of 25 microseconds per day. |
| Rubidium | Provides holdover performance with a max drift of 1 microsecond per day. Rubidium oscillator is warrantied for two years. |
| Base Model - Dual Power | Description |
| Dual Power | AC power with DC (24-48 VDC) as a backup or primary. |
| Option Cards | Description |
| IRIG | 4x Port IRIG Outputs |
| Gigabit Ethernet | 3x 10/100/1000 Base-T Ethernet NTP Ports |
| NTP/PTP | 1Gb Precision Time Protocol (PTP) option module card supports PTP Version 2 |
| 10MHz | 10 MHz option card provides three (3) sine wave BNC outputs. |
| 1PPS | Includes one (1) 1 PPS input, one (1) 1 PPS output, and one (1) user selectable 1 to 10 MHz sine wave frequency input. |
| Power Options | Description |
| Dual AC | Provides a second AC power input to the system |
| Support Plan Options | Description |
| Standard | 5-year warranty with semi-annual software releases for enhancements, bug fixes and updates for security threats. |
| PSP | Premium Support Package that features 24/7 emergency technical support, express next-day loaner service, priority repair services, notification of new releases. |

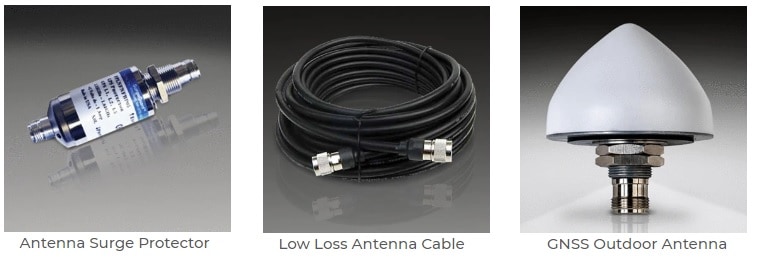

ACCESSORIES
