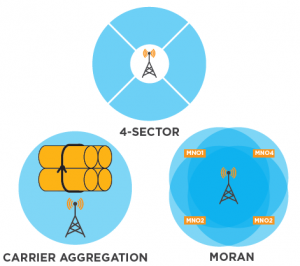

This is a compact High Capacity Multicarrier Advanced LTE Small Cell, supporting up to 4 carriers of 2×2 MIMO (2 carriers of 4×4 MIMO), 512 users and 24 dBm / 250 mW power per antenna port.It is intended for public and private deployments in enterprise, urban and suburban scenarios, supporting pre- 5G dense networking both outdoors and indoors. Alternatively, it can also be deployed for Fixed Wireless Access deployments in urban, suburban, remote and rural scenarios. It allows the aggregation of up to 4 carriers (80MHz total BW),
implement a 4-sector multicell solution or support 4 different operator frequencies via Neutral Host MORAN, depending on band combination.

  • Its sleek appearance makes it very suitable for deployments in aesthetically sensitive locations.
  • Its truly carrier grade RAN and vRAN network node supports fully embedded eNB to 5G-like virtualised multilayer architectures.
  • This is fully software upgradeable to support a roadmap of LTE Advanced and 5G features.
  • This offers great flexibility for backhaul connectivity via its 10 Gbps Ethernet port and Pluggable SFP+.
  • Best in Class Silicon
  • Carrier & Mission-Critical Grade Quality
  • Flexibility for RAN & vRAN Deployment

Features:

  • LTE FDD or TDD 3GPP Compliant Local Area BS Class Small Cell
  • 4 transceivers (cells) per unit (multicarrier) and up to 512 users
  • 24 dBm/250 mW Tx power per port
  • 2×2 MIMO per carrier (cell) for 4 carriers or 4×4 MIMO per carrier for 2 carriers
  • 5, 10, 15 & 20 MHz channels per carrier with up to 80 MHz CA
  • Different TDD and FDD Band combinations:1, 2, 3, 5, 6, 7, 8, 12, 38, 40, 41, 42, 43,46, 48/CBRS,…
  • Integrated GNSS (GPS, GLONASS, BDS) and 1588v2
  • 1 x 10 Gigabit Ethernet Connectivity
  • 1 x SFP+ Pluggable (optical, coax,…)
  • Neutral Host MOCN/MORAN/Slicing
  • vRAN/MEC/5G Architecture Ready
  • Optional Embedded EPC
  • Flexible Remote Management Interface

With its unrivalled versatility and performance, this offers an optimal dense networking solution for a wide range of applications and deployment modes.Neutral host operators can support up to four licensed carrier frequencies in a single SKU.Service providers with access to multiple spectrum allocations can cost-effectively offer high bandwidth services.

High Capacity Multicarrier Advanced LTE Small Cells

Technical Specification

  • Transceiver Specification
    • Local Area Basestation Class
    • 4 transceivers (cells) per unit (CA or Multicell)
    • 2 x 2 MIMO per transceiver (cell) SW upgradeable
    • to 4 x 4 MIMO (with 2 transceivers)
    • 24dBm/250mW RF power per antenna port
  • Band Support
    • LTE FDD Bands 1, 3, 7, 14, 28, 68
    • LTE TDD Bands 38, 40, 41, 42, 43, 48/CBRS*
    • Other FDD and TDD Bands on request
      *: B48/CBRS limited to 47dBm/EIRP
  • Network Interfaces
    • Layer 1 & 2
      • 1 x 10GBE port
      • 1 SFP +Pluggable  port (Optical, Coax)
      • IPv4/IPv6
  • Layer 3 and OAM
    • S1 or SGi (Network-in-a-Box)
    • Type 1 OAM (TR-069/TR-196), Type 2 OAM (SNMP), Kuha, OAM Webserver or CLI SAS (CBRS)
    • Alternative OAM interface possible (XML, Netconf, Proprietary)
  • LTE Feature Support
    • 3GPP Release 11 (upgradeable to Release 13)
    • Up to 512 active users
    • Multicell or CA on LTE FDD or TDD
    • 64QAM DL / 16QAM UL SW upgredable to 256QAM DL / 64QAM UL
    • Integrated GNSS (GPS, GLONASS, BDS) & 1588v2
    • Cell Selection/Re-selection
    • Radio Bearer Control
    • Admission Control
    • Scheduler & Rate Control (PFS)
    • Neutral Host (MOCN, MORAN, Slicing)
    • Optional Embedded EPC (Network-in-a-box)
    • vRAN/MEC/5G Architecture Ready
    • OAM (CM, PM, FM, Diagnostics) & SON
  • Security
    • 3GPP standard LTE air interface security
    • IPSec AES encrypted tunnels on all network connections
    • Trusted Platform technology embedded in silicon
    • Per Device PKI key pairs
    • Secure Boot through digital signatures of all executables
  • Power
    • 48 VDC – Others on request
    • <100W (Max Tx power, full data traffic)
  • Physical
    • Dimensions: 500 x 300 x 150mm (22.5 litres, exc. antenna)
    • Ingress Protection: IP67
  • Environmental
    • Weight : 8 Kgs
    • Temperature: -40 to +50ºC (operating)
