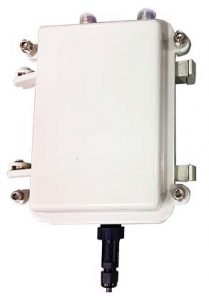

Enhanced Self Organizing Wireless Network, supports Point-to-Point (PtP), Point-to-Multipoint (PtMP) and Non-Line-of-Sight (NLOS) wireless communication.

This is an innovative OFDMA (not WiFi) 2×2 MIMO high-capacity Wireless Backhaul and Enhanced Self Organizing Network Solution, excellent for operation in heavily congested unlicensed Bands 2.4/3.5/5.8GHz where spectrum resources are scarce.It is also available in any licensed Band from 220MHz to 6GHz.It is designed to make the planning, configuration ,management, optimization and healing of backhaul networks simpler and faster.Delivering up to 150Mbps is the ideal choice for last mile connectivity, and high-end applications requiring guaranteed SLA.It works on high speed moving platforms, up to 500km/hour. Multiple network architectures can be selected for the UAV, Drone, Helicopter and Military / Public Safety deployment scenarios.As the units are small and light weight, they can also be body worn.

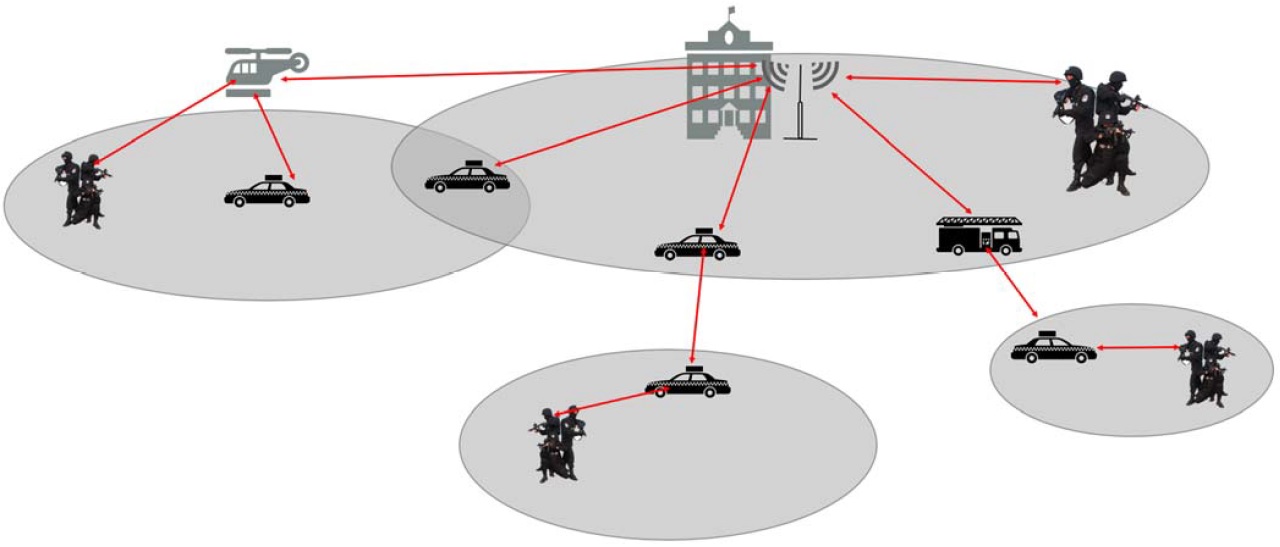

Application:

Features:

  • Supports unlicensed bands 2.4/3.5/5.8GHz
  • Supports customized licensed and public safety frequencies from 220MHz to 6GHz
  • Supports up to 150Mbps aggregate @ 20MHz and 2×2 MIMO
  • Flexible channel bandwidth 1.4/3/5/10/15/20/40MHz
  • Supports Line-of-Sight, Near-Line-of-Sight and NO LINE OF SIGHT connections
  • Supports Point-to-Point and Point-to-Multipoint
  • Supports Bridge Connections and multi-level cascading (Star+Star or Star+SON)
  • Uniform scheduling of resources by the Master Node without conflicts
  • Supports high speed moving platforms up to 500km/hour
  • Ethernet connectivity and low jitter & low latency
  • Up to 64 concurrent Subscriber Units and 64 RRC Subscriber Units
  • TDD radio synchronization enables dense deployments with maximum performance, using built-in GPS to prevent mutual interference to increase network capacity and range
  • Dynamic Bandwidth Allocation (DBA) maximizes throughput for active users demanding various service levels
  • Supports both broadcast and unicast
  • Support DRX with very low power consumption
  • Excellent anti-interference capability by FHS and AICS
  • Longest transmission distance maximum 150km
  • Supports self-synchronization without external GPS
  • Intelligent routing, load balancing, fast switching of routing nodes according to the network condition
  • Supports multi-hopping with all nodes in the network communicating with each other.

General Technical Specifications

  • Frequency Bands 2.4/3.5/5.8GHz
  • Maximum Net Aggregate Capacity
    • High-Capacity Base Station (BS):10Mbps, 25Mbps, 50Mbps, 100Mbps, 150Mbps (Master or Slave Unit)
    • High-Capacity Subscriber Unit (SU):10Mbps, 25Mbps, 50Mbps, 100Mbps, 150Mbps (Master or Slave Unit)
    • Number of SUs per BS: Up to 64 concurrent SUs and other 64 standby SUs simultaneously
    • Channel Bandwidth 1.4/3/5/10/15/20/40MHz configurable, Dynamic Channel BW selection
  • Radio and Modem
    • Modulation
      • QPSK ~ 256QAM
      • Fixed mode or Adaptive Coding and Modulation (ACM), hitless auto-rate support
    • Automatic Transmit Power Control(ATPC) : 20dB
    • TDD Synchronization  : Inter & Intra site synchronization, embedded GPS receiver
    • DFS (FCC & ETSI) : Support
    • Radio Access Scheme : OFDM, Auto MIMO 2×2
    • Adaptive Modulation & Coding : Support
    • SLA Management:CIR, MIR, Best-Effort
    • Latency : Max 10msec
    • Duplex Technology :TDD
    • Uplink/Downlink BW: Allocation Configurable: Symmetric or Asymmetric
    • Encryption:AES 128 / AES 256
  • Management
    • Network Management SNMP V3 Protocol, Telnet, HTTP, IPv4 & IPv6
    • Local Management WEB LCT, 10/100 Base-T(X) interface
  • RF Tx & Rx
    • Max Tx Power 25dBm at BS & SU
    • Embedded Antenna : Frequency Range 5.2-5.9GHz , Gain 14 dBi
    • Typical Receive Sensitivity
      • QPSK -96dBm
      • 16QAM -90dBm
      • 64QAM -84dBm
      • 256QAM -78dBm
    • Tx Power Control Range:20dB
    • Tx Power Control Step: 0.5dB
    • Rx Overload:-5dBm
  • Interface & Networking
    • Ethernet Interface : Type 10/100/1000Base-T, support PoE
    • Sub Convergence Layer : Layer 2 (Bridging learning of 4K MAC addresses)
    • QoS Support
    • VLAN:802.1Q and QinQ
  • Test & Approvals
    • Radio Spectrum EN 301 893, EN 302 326-2, EN 302 502
    • Safety EN 60950-1, EN 60950-22
    • EMC EN 301 489-1, EN 301 489-4
  • Mechanical, Electrical & Environment
    • Operating Voltage : 12VDC or 24VDC or PoE
    • Power Consumption : Max 30Watts
    • Dimension : 270×300×95mm
    • Weight:Max 2.5KG
    • Operating Temperature: -10 degree C to +60 degree C
    • Operating Humidity :0~100%
    • IP Protection:IP67

* All specifications are typical values unless otherwise stated and are subjected to change without notice.
