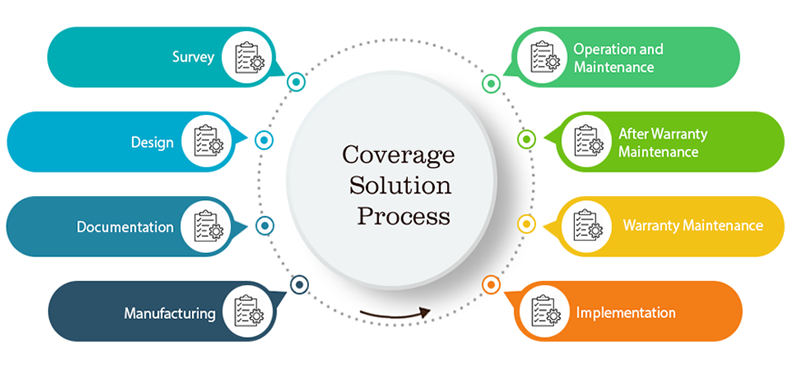

RKTPL is the pioneer in providing turnkey coverage enhancement solutions for indoor and Outdoor.We understand the complexities of coverage and capacity needs of mobile operators. RKTPL offers an un-biased approach to the growing demand by offering flexible and scalable solution for a wide range of wireless technologies.

Indoor Coverage Solutions
Outdoor Coverage Solutions
2G/3G/4G Cellular Signal Coverage Optimization
Fiber-Optic DAS
Repeaters
Indoor Coverage Solutions

RKTPL is the pioneer in providing turnkey in-building coverage enhancement solutions.we understand the complexities of coverage and capacity needs of mobile operators.RKTPL offers an un-biased approach to the growing demand by offering flexible and scalable In-Building Coverage Solutions (IBS) for a wide range of wireless technologies. Judicious survey using sophisticated RF design, prediction and data collection tools ensure cost-effective network planning and offering optimized site-specific solutions.

Passive DAS Solutions

Passive Distributed Antenna System (DAS) solution is built with a combination of passive components or RF ancillaries like splitter, coupler, feeder etc. The passive solution is cost effective and widely used for covering small and medium size buildings.

The Passive DAS solution has many advantages when it comes to single operator with limited technologies. This solution is totally free from noise and active intermodulation products with less operational and maintenance cost.

Main sources for passive DAS solutions are Microcell and Repeaters.

Active DAS Solutions

Active DAS is a concept of Fiber Optic Repeater based solutions which consists of a master and remote unit. RKTPL’s multi-band, multi-technologies DAS supports CDMA, GSM900, GSM 1800, WCDMA and LTE based on customer requirements. A master unit converts the RF signals to optical and this can be connected to remote units via Fiber Optical Cable. Remote unit converts the optical signals to original RF signal. Remote unit is further connected to a passive DAS to extend the coverage to the desired areas.

RKTPL’s Active DAS offers Network Management Software to control & monitor and the software is capable of FCAPS (fault, configure, alarm, performance, security).

To meet the capacity requirements and provide seamless RF coverage inside the buildings, RKTPL emerges as the leading solution provider for Distributed Antenna System (DAS). DAS leverages the potential of multiple distributed antennas for enhanced RF coverage in subways, tunnels, hotels, shopping malls, hospitals, airports, parking areas, and high rise buildings.

RKTPL has designed and deployed DAS solutions to meet the unique needs of its customers for various in-building coverage enhancement requirements such as Metro Tunnels, Airports, Important Heritage Buildings etc. The experience of working closely with RAN OEMs and Wireless service providers enables us to continuously innovate and upgrade the DAS for customer specific coverage and capacity enhancement solutions.

Active DAS consists of three-stage system, that is,

  1. Point of Interface (POI): It’s a combining/splitting unit used to multiplex multi-technology and multi-operator signals in the network.
  2. Optical Master Unit (OMU): It converts the incoming multiplexed RF signal in to an optical signal, which is transmitted over the optical fiber to feed Remote Unit.
  3. Optical Remote Unit (ORU): It converts the optical signal into RF signal and feeds to a network of distributed antennas for broad range of coverage. The Uplink follows the route back from the mobile station to the BTS.

Under Active DAS family RKTPL offers:

  1. Fiber DAS: It boosts up the RF coverage through optical fiber network.
  2. Digital DAS: It’s an advanced version of Fiber DAS based on Base Band processing using Digital Signal Processing (DSP) technology and supports CPRI

Fiber DAS:

RKTPL’s Fiber DAS solution consists of Point of Interface (POI) and Optical Master Unit (OMU) located at the base station site. OMU distributes the signal over dedicated fiber network to Remote Unit (RU), designed for discrete mounting in both indoor and outdoor environment. The RU distributes the RF signal to antennas over coaxial cable through splitters, couplers, and other passive components.

POINT OF INTERFACE (POI)
Fiber DAS POI interface connects various BTS, Small cells, and Repeaters to the OMU. The POI shelf consists of different interface modules, each supporting a single band, which in turn can be connected to different carriers. POI interfaces various technologies over a wide range of frequency bands. Each interface module can be either duplexed (single port for TX/RX) or un-duplexed (separate ports for TX/RX) configuration, which is enabling connection to different BTS.

OPTICAL MASTER UNIT (OMU)
Fiber DAS OMU converts RF signal into Optical signal for transmission. It’s technologies-agnostic system and supports multi-operators with multi-technologies. At the remote end, the signals are converted back into RF for propagation in the local area. It supports low and high power multi-band, multi-technology remote units.

REMOTE UNIT (RU)
Fiber DAS RU covers major cellular bands and technologies including GSM, DCS, CDMA, WCDMA, and LTE. Remote Unit provides an exceptionally low noise figure and lower group delay by reducing interference to BTS, and thus  ensures optimum performance and maximum throughput. The offered Remote Unit can be indoor (IP55) or outdoor (IP65) type.

Digital DAS:

RKTPL’s Digital DAS solution provides extended wireless services throughout a building or multiple buildings. It’s the most flexible, scalable, and reliable solution to address coverage and capacity needs for current and emerging wireless networks available in the global DAS market. Its architecture consists of three major components: Digital Master Unit, Digital Hub Unit, and Digital Remote Unit.

DIGITAL MASTER UNIT
The RF input from multiple BTS units is transmitted to Master Unit. It combines multiple technology inputs and converts them into a digital CPRI data stream using FGPA based DSP technique. The converted signal is transmitted through single mode duplex CPRI cable to the Hub system by using an SFP+ transceiver module to achieve higher transmission rate. The optical connectivity can be extended for eight Hub units from a single Digital Master Unit.

DIGITAL HUB UNIT
Digital Hub Unit acts as the central switching hub for the system. The digitized data stream gets distributed through CPRI connectivity to the different Digital Remote Units. Digital Hub Unit extends its optical coverage to seven different Digital Remote Units. Digital Hub Unit controls the physical ID of connected devices and provides an easy to monitor and control environment on Network Management System (NMS). Additionally, single Hub Unit can manage up to 14 different Digital Remote Units.

DIGITAL REMOTE UNIT
Digital Remote Unit is a low power multi band operational device. In Digital Remote Unit, CPRI data stream from Digital Hub Unit is converted back into RF signal and transmitted by using in-built antennas. It also has the provision of linking an external 3 dBi Omni antenna to the device for increasing its coverage area by using the cascading feature. The Digital Remote Unit can be monitored and controlled by NMS.

Outdoor Coverage Solutions

RKTPL Offers customized products and solutions to extend existing BTS coverage and capacity. These cost effective and user-friendly products are compatible with different base station equipment manufactures. These kinds of products help the mobile network operator to optimize their network without many changes in the network parameter. Capacity of some BTS sector’s in rural and sub-urban areas may not be fully utilized, by using such products, capacity issues can be managed by diverting/extending the underutilized capacity to other desired areas. This helps in maximizing the capacity utilization of the underutilized sectors of the base station.

Terrain complexities could lead to signal fading, interference, call quality deterioration and call drops within the coverage area of BTS. RKTPL’s experience helps to design and develop innovative outdoor coverage products which caters to such dynamic RF conditions.

2G/3G/4G Cellular Signal Coverage Optimization

80% of all mobile data traffic is generated indoors, so the depth & seamless indoor coverage effects of competition in business applications is the key to 3G and 4G network. The RKTPL 2G/3G/4G Cellular Repeater product line is the economical and reasonable solution for telecom operator to enhance network competitiveness, and thus enables operators to offer a greater user experience.

Digital Multi-Band Modular RF Repeater

With the accelerating development of mobile communication technology, additional communications technologies and Frequency Bands are being added by Operators. Hence, telecom operators have to handle multi-Bands and Technologies simultaneously. They also face the potential issue of re-farming spectrum resources.
A standard integrated Repeater cannot easily be upgraded, wasting Operator's Repeater investments.
To address this issue, we offerDigital Multi-Band Modular RF Repeaters.It provides software-based platform and enables on-the-fly filter to be changed/upgraded by software without expensive hardware upgrading. It supports both multi sub-bands selective (bandwidth tunable) and/or channel selective function. It is a standard 19" rack design and support upgrading from Single Band to Dual Band/ Tri Band and even Six Band with just adding separate RF Cards easily.
Digital Multi-Band Modular RF Repeater is a cost-effective and intelligent solution that solves the last mile coverage problem, and multi-bands operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz and supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.
The Repeater is connected via coaxial cable to a Donor Antenna and Service Antenna or DAS, The Donor Antenna is placed outside the building where it has access to a BTS signal, and the Service Antenna or DAS are placed in the building where they can extend radio coverage to the areas lacking coverage.

Key Feature

  • Up to six bands operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz.

  • Supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.

  • Multiple RF Cards can amplify the same frequency band in order to address LTE MIMO 2x2 or 4x4.

  • Band Selective or Channelized based upon Software Defined Filtering, and BW or number of filters can be tunable or upgradeable by software.

  • Modular scalable architecture allows user to quickly modify, upgrade or expand repeater platform by simply adding additional RF cards and software features.

  • Supports upgrading filter parameters in case of frequency re-farming by software.

  • Innovative Digital Filtering technology basis on DSP and SDR to provide excellent signal selectivity and minimum time delay.

  • Better out of band rejection than analog SAW filters.

  • Unique max AGC 60dB firmware to ensure stables operating on moving platforms such as ship or trains.

  • Compatible with baseband hoping and synthesized hopping.

  • Built-in IP Web Browser GUI and RJ-45 port for local control.

  • Built-in 2G or 3G or 4G modem as option for remote control.

  • Built-in individual AGC & ALC functions for each sub-band for multi-operator and public safety applications.

  • High working Gain min. 95dB and cost-effective solution making coverage more affordable for small building or driving a DAS in large buildings.

  • RF composite power +33dBm to +43dBm for medium & large coverage application.

  • 19" rack mount both for indoor use and outdoor use with additional waterproof cabinet.

Application

To expand cellular signal coverage of fill signal blind area where signal is weak or unavailable.

  • Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

  • Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Apartments, Packing Lots, Metro, Tunnels and Elevators etc.

Fiber-Optic DAS

Analog Multi-Band Optical Transport System

Analog Multi-Band Optical Fiber transport system is designed to integrate multi-band systems and help to extend the coverage of in-building systems, long tunnel sections and large area outdoor coverage.

The Master Unit (MU) will include the POI Unit and Optical Unit. The POI is designed to handle Five Bands with up to Four Operators in each Band. All Five Bands do not have to be deployed initially. Additional Bands beyond the initial number of Bands can be added at any time simply by plugging in BTS’ to the POI and adding Band Modules in the Remote Unit.

The Optical Unit includes a Monitor Unit, 8-way Divider, Power Supply Unit, Redundant “Hot Swap” Power Supply Unit and Analog RF to Optical Convertor Unit. This System will handle up to 8 Remote Units in a Star Architecture and is expandable.

The Modular Remote Unit includes a Power & Monitor & Optical Unit, POI_1, POI_2 and RF Unit for the required Bands. As the Unit is Modular, Bands beyond the initial deployment can be added by adding Band Modules.

A fully configured System can include up to 8 Remote Units. The System can be optionally expanded to handle additional Remote Units.

Both the Master Unit and the Remote Units can housed in Optional Wall Mount Rack Cabinets. The Standard are Indoor Rack Cabinets, but IP-65 or IP-67 Wall Mount Rack Cabinets are available for Tunnel and harsh environment locations.

Key Feature

  • Up to six bands operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz.

  • Supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.

  • Supports Multi-Band and Multi-Operator system

  • Analog Optical Fiber System supports Star connection

  • Supports up to 8 Optical Output Ports in one Master Unit

  • Up to 8 High Power Remote Units

  • Supports Redundant Power Supply Units in Master Unit

  • Modular scalable architecture of the remote unit allows user to quickly modify, upgrade or expand repeater platform by simply adding additional RF cards and software features.

  • RJ-45 Port in OMU Unit to support Local Control and Alarming on an IP Web Browser GUI.

  • External Ethernet or Wireless Modem via 2nd RJ-45.

  • SNMP V3 supported with a MIB File.

  • Built-in 2G or 3G or 4G modem as option for remote control.

  • Built-in individual AGC & ALC functions for each sub-band for multi-operator and public safety applications.

  • RF composite power +33dBm to +43dBm for medium & large coverage application.

  • Rated for both indoor and outdoor use with versatile 19" rack mount, wall mounting or pole mounting options.

  • Optional IP-65 waterproof wall mounting or pole mounting case supported for up to 3 frequency band of remote unit.

Application

To expand cellular signal coverage of fill signal blind area where signal is weak or unavailable.

  • Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

  • Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Apartments, Packing Lots, Metro, Tunnels and Elevators etc.

M-DOTS Digital Multi-Band Optical Transport System

Digital Multi-Band Optical Transport System (M-DOTS) is designed to integrate multi-band systems and extend the cellular coverage into large Public Venues, such as Hospitals, Hotels, Shopping Malls, Office Buildings, long Tunnels sections and large area outdoor coverage.

The M-DOTS consists of a Master Unit (MU), and Remote Units (RU’s). MU consist Optical Master Unit (OMU) and Extension Master Unit (EMU). MU supports up to 48 digital optical fiber port, and each port can support up to 8 remote unit’s in cascading connection. Loop redundancy function can be supported.

M-DOTS is a cost-effective and intelligent solution that can be used in cases when optical master unit and remote unit are not located close to each other. In the downlink, OMU pick up the Multi-Band Base Station signal and covert it to digital signal, and convert digital signal to optical signal, then transport by optical fiber. In RU, digital signal will be changed back to RF signal and then amplified by the high power and high linearity amplifier (HPA), and output to the coverage area. It operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz and supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD, PCS and AWS.

Key Feature

  • Up to four bands operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz.

  • Supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.

  • ALL Digital Software and Hardware Platform

  • Band Selective or Channelized based upon Software Defined Filtering, and BW or number of filters can be tunable or upgradeable by software.

  • Modular scalable architecture of the remote unit allows user to quickly modify, upgrade or expand repeater platform by simply adding additional RF cards and software features.

  • Supports upgrading filter parameters in case of frequency re-farming by software.

  • Innovative Digital Filtering technology basis on DSP and SDR to provide excellent signal selectivity and minimum time delay.

  • Supports flexible network topologies such as Star or Cascade connection and Fiber Loop Redundancy.

  • Supports up to 48 Optical Output Ports.

  • Supports up to 192 RU’s with loop redundancy.

  • 8 Remote Unit’s Cascade supported for each Optical Port.

  • Advanced time delay compensation function for each Remote Unit to avoid time dispersion issues.

  • Multiple RF Cards can amplify the same frequency band in order to address LTE MIMO 2x2.

  • Supports up to 10 Gb/s Digital Optical Fiber Speed.

  • RJ-45 Port in OMU Unit to support Local Control and Alarming on an IP Web Browser GUI.

  • External Ethernet or Wireless Modem via 2nd RJ-45.

  • SNMP V3 supported with a MIB File.

  • Three Sectors supported Optional.

  • Built-in 2G or 3G or 4G modem as option for remote control.

  • Built-in individual AGC & ALC functions for each sub-band for multi-operator and public safety applications.

  • RF composite power +33dBm to +43dBm for medium & large coverage application.

  • Rated for both indoor and outdoor use with versatile 19" rack mount, wall mounting or pole mounting options.

  • Optional IP-65 waterproof wall mounting or pole mounting case supported for up to 3 frequency band of remote unit.

Application

To expand cellular signal coverage of fill signal blind area where signal is weak or unavailable.

  • Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

  • Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Apartments, Packing Lots, Metro, Tunnels and Elevators etc.

Repeaters

Repeaters are used to enhance the cellular network coverage by extending the Radio Frequency (RF) signal to the areas where the required signal strength is not adequate for mobile coverage.

Indoor repeaters overcome insufficient wireless coverage in indoor areas such as office buildings, parking garages, apartment buildings, shopping malls and residential houses. Outdoor repeaters provide wireless coverage in outdoor areas degraded by geographic topologies such as mountains, valleys, dense foliage and high rise urban landscapes.

Our diverse Repeater portfolio includes :–

Single Band SMART ICS Repeater (integrated Donor and Service Antenna)

Digital Single Band Indoor Mini Repeater is an innovation technology, adopting SDR (Software Define Radio) technology based upon our FPGA & DSP (Digital Signal Processing) platform. It enables on-the-fly filter change/upgrade by software without an expensive hardware upgrade.

It has both embedded Donor and Service Antennas, and also supports a Port for connecting to an External Donor Antenna.

Key Feature

  • Customized Single Band for 1800MHz, 2100MHz, 2600MHz
  • Fully wireless, plug-and-play, DSP architecture
  • SOC & embedded architecture enable delivery of significantly improved network coverage with very low power consumption
  • Supports Firmware upgrade of Filter parameters in case of frequency re-farming
  • Built-in Smart Donor Antenna and Service Antenna, plug-and-play, for easy installation
  • Better out of band rejection than analog SAW filters
  • Built-in Micro USB interface for local control
  • Built-in 3G modem for SNMP trap function
  • Built-in individual AGC & ALC functions for each sub-band
  • Gain min. 75dB
  • Built-in Patented ICS (Interference Cancellation System) mechanism to decrease the Antenna Isolation requirement
  • Concise LED User Interface (UI) allows quick and easy installation by end-user
  • Embedded additional SMA-type connector for Indoor D.A.S connection

Application

To expand Single Band 1800 MHz, 2100 MHz, 2600MHz signal coverage of In-Building areas where the cellular signal is weak or has poor data throughput.

Digital Dual Band Home Repeater

With the development of mobile communication technology, more and more new communication technologies (like 3G & 4G) will be adopted nowadays. Hence, telecom operators have to optimize their network and offer best service to users to improve their competitive ability. However, 3G or 4G signals attenuate severely when traveling through walls, floors, and windows, leaving more than 40% of all indoor spaces with inadequate coverage and poor data throughput. Then the operators need a cost-effective solution to resolve such coverage problems easily and rapidly.

Digital Dual Band ICS Home Repeater is a carrier-grade, consumer-friendly digital smart signal booster that maximizes a subscriber’s indoor wireless experience by eliminating in-building dead zones. It is really cost-effective and intelligent solution to solve the last mile coverage problem, which is adopting SDR (Software Define Radio) technology basis on FPGA & DSP (Digital Signal Processing) platform. It enables on-the-fly filter to be changed/upgraded by software without expensive hardware upgrading.

Fully wireless design, built-in Donor Antenna and Service Antenna achieve true “Plug & Play” – basically no need for configuration and free of maintenance. In fact, SignalTouch will be able to intelligently and automatically senses and adapts to its dynamic RF environment. By continuously monitoring the gain and making real-time adjustments, the system will never overdrive the base station or raise the noise floor. SOC & Embedded architecture enables to delivery significantly improving network coverage with very low power consumption.

Key Feature

  • Available customized dual bands for 1800MHz, 2100MHz and 2600MHz.

  • Supports all major wireless technologies include GSM, EDGE, DCS, UMTS, LTE FDD.

  • Fully wireless, plug-and-play, DSP architecture.

  • SOC & embedded architecture enable delivery of significantly improved network coverage with very low power consumption.

  • Supports upgrading filter parameters in case of frequency re-farming by software.

  • Built-in Smart Donor Antenna and Service Antenna, plug-and-play, no-touch ease of use and installation

  • Better out of band rejection than analog SAW filters.

  • Built-in Micro USB interface for local control.

  • Built-in individual AGC & ALC functions for each sub-band.

  • High working Gain min. 75dB and cost-effective solution making coverage more affordable for small building or driving a DAS in large buildings.

  • Built-in patented 25dB ICS (Interference Cancellation System) mechanism to ensure stable operation.

  • Concise LED User Interface (UI) allows quick and easy installation by end-user.

  • Embedded additional SMA-type connector for external donor antenna and Indoor D.A.S connection in small/medium coverage area.

Application

To expand cellular signal coverage of fill signal blind area where signal is weak or unavailable.

  • Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Apartments, Packing Lots, Metro, Tunnels and Elevators etc.

Frequency Shift Repeaters

Digital frequency Shifting Repeaters (FSR) system designed to solve problems of weak mobile signal, which can expand more coverage than RF repeaters and reduce investment for the areas where fiber optic or dedicated cable is not allowed. The Frequency Shifting Repeater system (FSR) consists of two parts: Donor Unit and Remote Unit. The Donor Unit receives the BTS signal via open air radio frequency (RF) transmission or direct couple closed to BTS, then coverts it from the working channel to transmission channel, and transmits the amplified signal to the Remote unit that will reconvert the signal to the working channel and provide signal to the areas where network coverage is inadequate.

As per the method of receiving BTS signal by the Donor Unit, two types of FSR are available:

   Cable-Access FSR: to receive BTS signal via a direct coupler closed to the BTS (Recommended)

   Wireless-Access FSR: to receive BTS signal via a Donor Antenna

Key Feature

  • Customized working frequency operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz.

  • Supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.

  • Band Selective or Channelized based upon Software Defined Filtering, and BW or number of filters can be tunable or upgradeable by software.

  • Supports upgrading filter parameters in case of frequency re-farming by software.

  • Better out of band rejection than analog SAW filters.

  • LED Indicator and Laptop via IP Web Browser GUI and RJ-45 port for local control.

  • Built-in 2G or 3G or 4G modem as option for remote control.

  • Built-in individual AGC & ALC functions for each sub-band.

  • High working Gain Max. 105dB both for Donor Unit and Remote Unit.

  • Eliminate isolation requirement in antenna installation due to the input and output frequency difference.

  • Max transmission distance between Donor Unit and Remote Unit is 20KM.

  • RF composite power +33dBm to +40dBm for medium & large coverage application.

  • Aluminum-alloy casing with IP-65 protection and cool system without fan.

  • Compact size and light weight, easy to install on wall or pole.

  • Optional GPS disciplined clock to provide an accurate, high-quality, stable synchronizing signal which can keep the frequency offset less than 0.01ppm all the time.

Application

To expand cellular signal coverage of fill signal blind area where signal is weak or unavailable.

  • Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

  • Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Apartments, Packing Lots, Metro, Tunnels and Elevators etc.

Digital Multi-Band Pico Repeater

Digital Multi-Band Pico Repeater is a carrier-grade, consumer-friendly digital smart signal booster that maximizes a subscriber's indoor wireless experience by eliminating in-building dead zone.

Digital Multi-Band Pico Repeater is a carrier-grade, consumer-friendly digital smart signal booster that maximizes a subscriber's indoor wireless experience by eliminating in-building dead zones. It is a cost-effective and intelligent solution that solves the last mile coverage problem and up to four bands operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz and supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.

The design adopts SDR (Software Defined Radio) technology based upon our FPGA & DSP (Digital Signal Processing) platform. It enables on-the-fly filter & Bandwidth configure/upgrade by software without expensive hardware upgrading. Built-in individual Gain and ALC setting for each sub-band for multi-technology application (e.g. GSM/UMTS) for single or multi-operator applications.

The Repeater is connected via coaxial cable to a Donor Antenna and Service Antenna or DAS, The Donor Antenna is placed outside the building where it has access to a BTS signal, and the Service Antenna or DAS are placed in the building where they can extend radio coverage to the areas lacking coverage.

Key Feature

  • Up to four bands operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz.

  • Supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.

  • Band Selective or Channelized per band based upon Software Defined Filtering, and BW or number of filters can be tunable or upgradeable by software.

  • SOC & embedded architecture enable delivery of significantly improved network coverage with very low power consumption.

  • Supports upgrading filter parameters in case of frequency re-farming by software.

  • Better out of band rejection than analog SAW filters.

  • Built-in Micro USB interface for local control.

  • Built-in 2G or 3G or 4G modem as option for remote control.

  • Built-in individual AGC & ALC functions for each sub-band.

  • High working Gain min. 70dB and cost-effective solution making coverage more affordable for small building or driving a DAS in large buildings.

Application

To expand cellular signal coverage of fill signal blind area where signal is weak or unavailable.

  • Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

  • Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Apartments, Packing Lots, Metro, Tunnels and Elevators etc.

Tri-Band Digital RF Repeater

Digital Tri-Band RF Repeater is a cost-effective and intelligent solution that solves the last mile coverage problem, and tri-band operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz and supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.

The design adopts SDR (Software Defined Radio) technology based upon our FPGA & DSP (Digital Signal Processing) platform. It enables on-the-fly filter & Bandwidth configure/upgrade by software without expensive hardware upgrading. Built-in individual Gain and ALC setting for each sub-band for multi-technology application (e.g. GSM/UMTS) for single or multi-operator applications.

The Repeater is connected via coaxial cable to a Donor Antenna and Service Antenna or DAS, The Donor Antenna is placed outside the building where it has access to a BTS signal, and the Service Antenna or DAS are placed in the building where they can extend radio coverage to the areas lacking coverage.

Key Feature

Tri-band operating supporting all major cellular frequency bands including 700MHz, 800MHz, 1800MHz, 1900MHz, 2100MHz or 2600MHz.

Supports all major wireless technologies include GSM, EDGE, DCS, CDMA, UMTS, LTE FDD.

Band Selective or Channelized based upon Software Defined Filtering, and BW or number of filters can be tunable or upgradeable by software.

Supports upgrading filter parameters in case of frequency re-farming by software.

Better out of band rejection than analog SAW filters.

LED Indicator and Laptop via IP Web Browser GUI and RJ-45 port for local control.

Built-in 2G or 3G or 4G modem as option for remote control.

Built-in individual AGC & ALC functions for each sub-band.

High working Gain min. 95dB and cost-effective solution making coverage more affordable for small building or driving a DAS in large buildings.

RF composite power +33dBm to +37dBm for medium & large coverage application.

Aluminum-alloy casing with IP65 protection and cool system without fan.

Compact size and light weight, easy to install on wall or pole.

Application

To expand cellular signal coverage of fill signal blind area where signal is weak or unavailable.

Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Apartments, Packing Lots, Metro, Tunnels and Elevators etc.

Ready to learn more? Contact us to find the right products and technologies for your coverage solutions needs.
