The Backpack System is a small form factor Network-in-a-Box LTE FDD or LTE TDD Small Cell, supporting by default a single cell capable of providing up to 10W RF power (configurable for 2W and 5W also) per antenna port.It is intended for rapid and self contained coverage deployments for Public Protection and Disaster Relief scenarios.

  • Its sleek appearance makes it very suitable for any type of environments. It is truly a complete carrier and mission critical grade Network-in-a-Box with the skin and appearance of a normal backpack.
  • As a result of its flexible software architecture, the Backpack System is software upgradeable to support a roadmap of new features.
  • Its sleek appearance makes it very suitable for any type of environments. It is truly a carrier grade RAN network node with the skin and appearance of a normal outdoor router product.
  • Its flexible software architecture,the Outdoor small cell is software upgradeable to support a roadmap of new features.
  • The outdoor small cell product design delivers high output power, low power consumption,small size and high efficiency.
  • The Outdoor Small Cell offers great flexibility for backhaul connectivity via its 1Gbps Ethernet port and SFP module.
  • Best in Class Silicon
    The beating heart of the Small Cell unit delivers unequalled processing power in a single SOC.It is one of the first to bring products leveraging this new generation of silicon to the small cell market.
  • Carrier & Mission-Critical Grade Quality
    We insist on SW development standards and practices from the safety-critical industries in order to ensure our products deliver “five
    nine’s” reliability out of the box.
  • Flexibility for RAN & vRAN Deployment
    We have architected our solutions from the beginning with hardware platform independence in mind. The same software solution can be deployed from fully embedded RAN architecture to 5G disaggregated and virtualised vRAN.
  • Best-in-Class Manageability
    We understand the increasing demands for realtime insight into network performance and end user experience.We have engineered an open and flexible management platform designed to enable easy integration with standards-based or proprietary OSS, orchestration and SON systems.

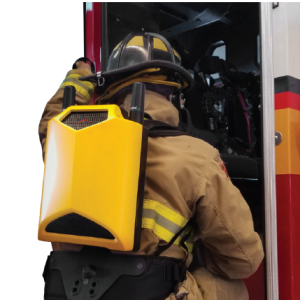

Deploy the Backpack System in outdoor venues, rural, urban, suburban and remote (industries, special events, public safety…) scenarios to provide rapid coverage with this ultra compact lightweight (less than 5.4 Kgs) Network-in-a-Box.

The Backpack System Network-in-a-Box for PPDR markets
  • 1 transceiver per unit (single carrier)
  • 40 dBm/10 W Tx power per antenna port
  • 2×2 MIMO
  • 5, 10, 15 & 20MHz Channels (10/20 CBRS)
  • TDD Bands 38, 40, 41, 42, 43, B48/CBRS*
  • FDD Bands 1, 3, 7, 14, 28, 68 (Other bands on request)
  • Integrated GNSS (GPS, GLONASS, BDS)
  • Gigabit Ethernet/SFP Connectivity
  • Optional Embedded EPC (Network-in-a-Box)
  • Neutral Host MOCN/MORAN/Slicing
  • vRAN/MEC/5G Architecture Ready
  • Flexible Remote Management Interface

Technical Specification

  • Single Cell LTE FDD or LTE FDD Medium Range Network in a Box
  • Transceiver Specification
    • 2 x 2 MIMO
    • Medium Range Basestation Class
    • 40dBm/10W RF power per antenna port ( config. to 2W, 5W also)
    • 1 transceiver per unit (single carrier)
  • Band Support
    • LTE FDD Bands 1, 3, 7, 14, 28, 68
    • LTE TDD Bands 38, 40, 41, 42, 43, 48/CBRS*
    • Other FDD and TDD Bands on request
      *: B48/CBRS limited to 47dBm/EIRP
  • Network Interfaces
    • Layer 1 & 2
      • 1 GBE port
      • 1 Pluggable SFP port (Optical, Coax)
      • IPv4/IPv6
  • Layer 3 and OAM
    • S1 or SGi (Network-in-a-Box)
    • Type 1 OAM (TR-069/TR-196), Type 2 OAM (SNMP), Kuha, OAM Webserver or CLI SAS (CBRS)
    • Alternative OAM interface possible (XML, Netconf, Proprietary)
  • LTE Feature Support
    • 3GPP Release 9 (upgradeable to Release 10)
    • Up to 64 active users
    • LTE FDD or LTE TDD
    • Integrated GNSS (GPS, GLONASS, BDS)
    • Cell Selection/Re-selection
    • Radio Bearer Control
    • Admission Control
    • Scheduler & Rate Control
    • Neutral Host (MOCN, Slicing)
    • Embedded EPC (Network-in-a-box)
    • vRAN/MEC/5G Architecture Ready
    • OAM (CM, PM, FM, Diagnostics) & SON
  • Security
    • 3GPP standard LTE air interface security
    • IPSec AES encrypted tunnels on all network connections
    • Trusted Platform technology embedded in silicon
    • Per Device PKI key pairs
    • Secure Boot through digital signatures of all executables
  • Power
    • 28 VDC – Others on request
    • <56W (Max Tx power, full data traffic)
  • Physical
    • Dimensions: 425 x 265 x 143 mm (16 liters)
    • Ingress Protection: IP67
  • Environmental
    • Weight : <5.4 Kgs
    • Temperature: -20 to +50ºC (operating)
