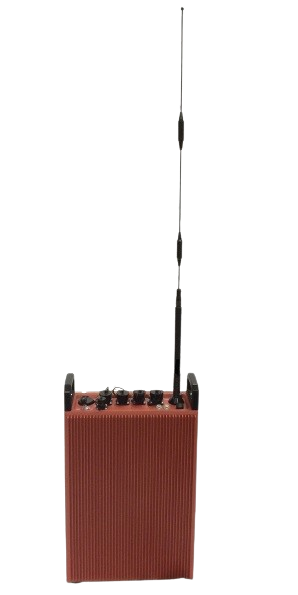

Manpack System

The Manpack System enables you to deploy a stand-alone operational cellular network in less than 5 minutes. This product combines all of the key elements of a cellular network into a single system that is easy to transport and carry. Integration with any external networks can also be supported.

A ruggedized enclosure, designed to support IP67, houses all the necessary components of a cellular network. The Manpack System is capable of supporting voice, data and SMS services. A Wi-Fi interface enables the system operator to manage its group of users via PC, laptop or tablet computer. The GUI interface is simple and easy to use. Applications such as video surveillance, GPS position tracking and push-to-talk communications can be supported with the unit.

APPLICATIONS AND DEPLOYMENT SCENARIOS

  • First Responder Communications
  • Emergency Cellular Networks
  • Rapid Deployment in Remote Areas or for Disaster Relief
  • Tactical Military Communications
  • Temporary Cellular Networks for Industry
  • Private Push-to-talk Mobile Networks

SYSTEM FEATURES

  • Voice, SMS/text, data services
  • SMS to individual, group or broadcast via Web GUI
  • Easy integration with external networks

CALL MANAGEMENT FEATURES

  • Individual & Group voice call & text messaging
  • Individual & Group push-to-talk

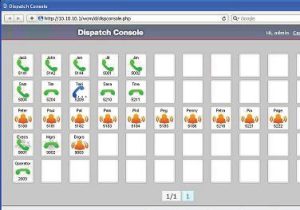

  • Dispatch console, broadcast text messaging
  • Call Forwarding, Call Waiting, Three way calling
  • System, group and individual based user dial plans
  • Inbound / Outbound call restrictions

TECHNICAL SPECIFICATIONS

  • Technology Supported : GSM/LTE/5G
  • Interfaces:
    • Ethernet / RJ-45
    • USB
    • Wi-Fi
  • Dimensions : 43 cm H × 30 cm W x 11 cm D
  • Weight : 13 Kg
  • Input Voltage : 12 - 35 VDC
  • Options : Battery Pack Module ( 7 Kg ) ,Backpack Frame Kit
  • Operating: -40 to +50°C*
  • Storage: -40 to +75°C*
