eNodeB , 2x2 MIMO ,40 W, FDD

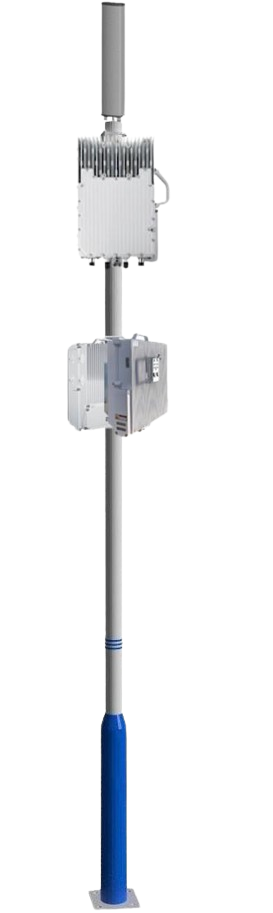

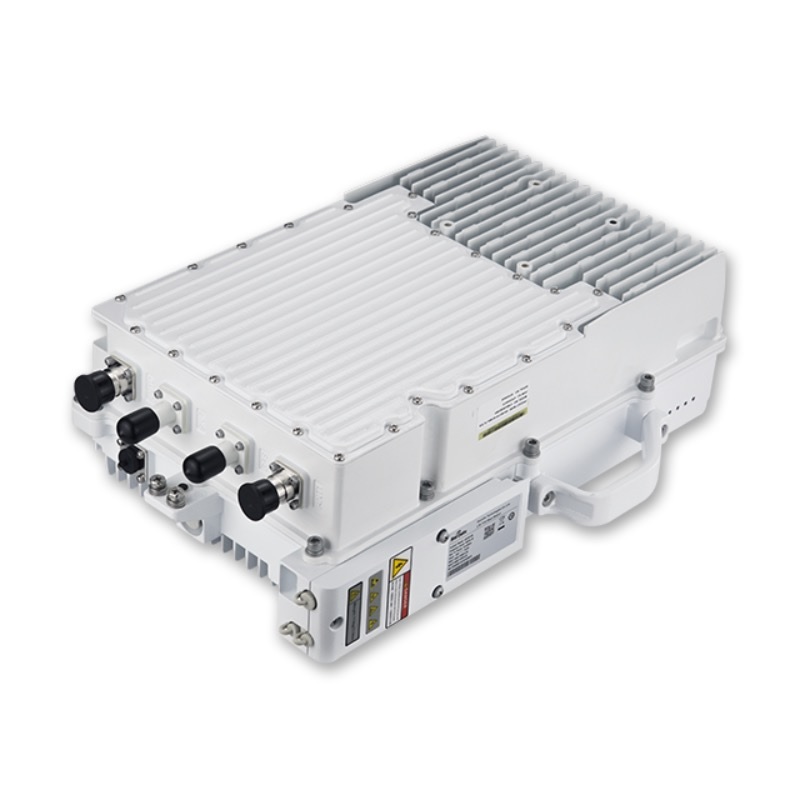

This eNodeB (eNB) is an outdoor Long-Term Evolution (LTE) product that operates in Frequency Division Duplexing (FDD) mode. This eNB provides users with high-speed broadband wireless access to the Internet using 2*40W output power (2x2 MIMO with 40W output each channel). This unit is compact, lightweight, and easy to deploy.This eNB offers excellent performance, helping operators to provide better coverage and higher capacity. This product has a standard one-year warranty; an extended warranty is available.

Buy Now

Key Features:

  • Standard LTE FDD Bands 3/5/8/28
  • Providing Voice, Text and Data Mobile Service
  • Complies with 3GPP standards
  • GUI-based local and remote Web management
  • Supports TR-069 network management protocol
  • External high-gain antenna
  • Higher transmission power for extended coverage
  • Any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)
  • Supports 256 RRC connected users
  • Peak rate: Up to DL 150 Mbps and UL 50 Mbps with 20 MHz bandwidth
  • Excellent Non-Line-of-Sight (NLOS) coverage performance
  • Interoperates with standard LTE Evolved Packet Core (EPC)
  • Lower power consumption to reduce OPEX and can be powered easily by RKTPL compact outdoor SmartUPS
  • Supports RET function AISG 2.0.
  • Embedded EPC ( Optional ) to operate in standalone mode
  • Traffic Offload : Local Breakout
  • Maximum Deployment Range upto 14 Km
  • IP67 Rated
  • Easy to Use and Deploy

Technical Specifications

TECHNOLOGY

  • Standard LTE FDD RAN (3GPP Release 10 compliant)
  • Frequency Band
    • B3 (UL: 1710 MHz–1785 MHz, DL: 1805 MHz–1880 MHz)
    • B5 (UL: 824 MHz–849 MHz, DL: 869 MHz–894 MHz)
    • B8 (UL: 880 MHz–915 MHz, DL: 925 MHz–960 MHz)
    • B28 (UL: 703 MHz–748 MHz, DL: 758 MHz–803 MHz)
  • Channel Bandwidth
    • B3/28: 5/10/15/20 MHz
    • B5/8: 5/10 MHz
  • Multiplexing MIMO: 2x2 (DL)
  • Security Radio: SNOW 3G/AES-128/ZUC
  • Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256)

INTERFACE

  • Ethernet Interface : 1 RJ-45 Ethernet interface (1 GE) and 1 optical (SFP) interface
  • Power Supply :
    • -40 VDC to -57 VDC, nominal -48 VDC
    • AC adaptor (multi-national standards)
  • Protocols Used : IPv4, UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, DHCP
  • Network Management:  IPv4, HTTP/HTTPs, TR-069, SSH, Embedded EPC
  • VLAN: 802.IQ
  • LED Indicators : 4 x status LED , PWR/ALM/RUN/ACT

PERFORMANCE

  • Peak Data Rate
    • 20 MHz: DL 150 Mbps, UL 50 Mbps
    • 10 MHz: DL 75 Mbps, UL 25 Mbps
  • User Capacity : 256 RRC connected users
  • Maximum Deployment Range :14 kilometers
  • Latency : 30 milliseconds
  • Receive Sensitivity : -102 dBm (per channel)
  • Modulation:
    • MCS0 (QPSK) to MCS28 (64 QAM)
    • DL: QPSK, 16 QAM, 64 QAM
    • UL: QPSK, 16 QAM
  • EVM : QPSK < 5%; 16 QAM < 5%; 64 QAM < 5%
  • Transmit Power Range : 0 to 49 dBm (combined, with 1 dB interval)
  • Quality of Service : Nine-level priority indicated by QoS Class Identifiers (QCI)
  • ARQ/HARQ : Yes
  • Synchronization : GPS

MODULATION LEVELS (ADAPTIVE)
MCS              Modulation Scheme                                 RSRP (dBm)                                         Coverage Distance (km)
0–9                QPSK                                                          -120 <= RSRP < -110                            10 < D <= 14
10–16            16 QAM                                                       -110 <= RSRP < -100                            5 < D < 10
17–28           64 QAM                                                        RSRP >= -100                                        D <= 5
NOTE: The information provided is for reference only as the environment can impact modulation levels.
Scenario: Base Station height is 30 meters; Customer User Equipment (CPE) height is two meters

FEATURES

  • Voice : VoLTE, Circuit Switched Fallback (CSFB) to GSM and UTRAN
  • Inter-RAT Mobility : To GSM, UTRAN and 5G NSA/SA
  • Cascading : Via Embedded EPC
  • SON (Self-Organizing Network)
    • Automatic setup
    • Automatic Neighbor Relation (ANR)
    • PCI confliction detection
    • Embedded EPC
  • RET Support :Yes
  • Traffic Offload : Local breakout
  • Maintenance
    • Local/Remote Web maintenance
    • Online status management
    • Performance statistics
    • Fault management
    • Local/Remote software upgrade
    • Logging
    • Connectivity diagnosis
    • Automatic start and configuration
    • Alarm reporting
    • User information tracing
    • Signaling trace

LINK BUDGET

  • Antenna Connection: Mini-DIN connector for external high-gain antenna
  • GPS Antenna: External GPS antenna, N-Type connector
  • VSWR : < 1.5
  • Power Control : UL Open/Close-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant)
