This (All-In-One LTE System) is a complete 4G LTE network solution combining eNodeB and EPC packet core in a single unit. It can be deployed with optional embedded applications to support stand-alone operations for a variety of use cases
INTEGRATED PACKET CORE
The All-In-One System includes the LTE Macro eNodeB which provides 2x2 MIMO LTE radio function with an integrated packet core network. The integrated packet core network is built on the EPC platform which includes HSS, MME, Serving Gateway, PDN Gateway functions and the Policy and Charging Rules Function (PCRF). The combined unit allows for simple deployment and operation as well as ease of support and maintenance.

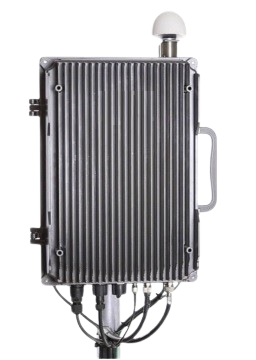

The All-In-One System can also be easily transported and installed. The rugged enclosure is rated for IP65 and can be mounted outdoors on pole tops, walls or building rooftops – suitable for deployment in almost any geographical location. The stand-alone LTE network provided by the unit allows the network operator the ability to fully manage the devices and network connectivity parameters for a private network.
In addition, optional embedded All-In-One System applications can be enabled to support communications capabilities out of the box. These include: Voice over LTE calling, multimedia messaging, or UE location tracking.
DEPLOYMENT APPLICATIONS
- Rural Broadband & Mobile Networks
- Private LTE Networks
- Emergency or Rapid Deployment LTE
- Industrial IoT/M2M Networks
| Technical Specifications | |
| EPC Functions | 3GPP Standards based EPC Packet Core |
| HSS ( Home Subscriber Server ) | |
| MME ( Mobility Management Entity ) | |
| S-GW ( Serving Gateway ) | |
| PDN-GW ( Packet Data Network Gateway ) | |
| PCRF ( Policy & Rules Control Function | |
| Optional Embedded Applications | |
| VoLTE | |
| Multimedia Messaging | |
| UE Location Tracking | |
| eNodeB Functions | As per 3GPP Standards |
| Frequency Band Supported | Multiple FDD/TDD Bands Available |
| Contact us for more info about band configuration | |
| Radio Configuration | |
| Radio | 2x2 MIMO |
| Tx Power | 2 x20 W |
| Sensitivity | -104 dBm @ 20 MHz |
| Channelization | 5,10,15,20 MHz |
| Number of Active Users | 192 |
| Interfaces | |
| Antenna Connectors | 2 x N –Type Female |
| Ethernet Port | RJ-45 10/100/1000BaseT |
| GPS Antenna | N – Type Female |
| Power | -48VDC; Optional AC adaptor |
| Operating Temperature | -40°C to 55°C |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Ingress Protection Rating | IP65 (Options: IP66/IP67 ) |
| Dimensions | 450 mm H × 320 mm W x 180 mm |
| Mounting Options | Brackets for wall, floor or pole or vehicle |
Contact us for more information
